Performance comparison between beluga_amcl and nav2_amcl

Environment details

CPU: Intel(R) Core(TM) i9-9900 CPU @ 3.10GHz x 16 cores
CPU Caches: L1 Data 32 KiB (x8), L1 Instruction 32 KiB (x8), L2 Unified 256 KiB (x8), L3 Unified 16384 KiB (x1)
RAM: 16384 MB
Host OS: Ubuntu 22.04.6 LTS
Commit hash: 9f003ee4855072ef78d58f91ecc1a3a423cac319

Experimental setup

The following configuration was used during the experiments:

The benchmarks were run using 250, 300, 400, 500, 750, 1000, 2000, 5000, 10000, 20000, 50000, 100000 and 200000 particles.
beluga_amcl was run both using multithreaded and non-multithreaded configurations. nav2_amcl only provides non-multithreaded execution.
Both the beam sensor and the likelihood field sensor model were tested.
The bagfile containing the synthetic dataset was replayed at 1x speed (real time).

More specific configuration details can be found in the params.yaml files:

nav2_amcl (likelihood field) uses likelihood_params.yaml
beluga_amcl (likelihood field, non-multithreaded) uses likelihood_params.yaml
beluga_amcl (likelihood field, multithreaded) uses likelihood_params_par.yaml
nav2_amcl (beam) uses beam_params.yaml
beluga_amcl (beam, non-multithreaded) uses beam_params.yaml
beluga_amcl (beam, multithreaded) uses beam_params_par.yaml

Except for the multithreading and sensor model parameters, the configuration on all of the files is identical.

Recorded metrics

The following metrics were recorded during each run:

RSS (Resident Set Size), amount of memory occupied by a process that is held in RAM.
CPU usage.
APE (Absolute Pose Error) statistics: mean, median, max and rmse.

Results

Beluga vs. Nav2 AMCL using Likelihood Field Sensor Model

In the following graph the results of the benchmark are shown for all three of the tested configurations. The vertical scale is logarithmic to better show the differences between the configurations throughout the whole range of particle counts.

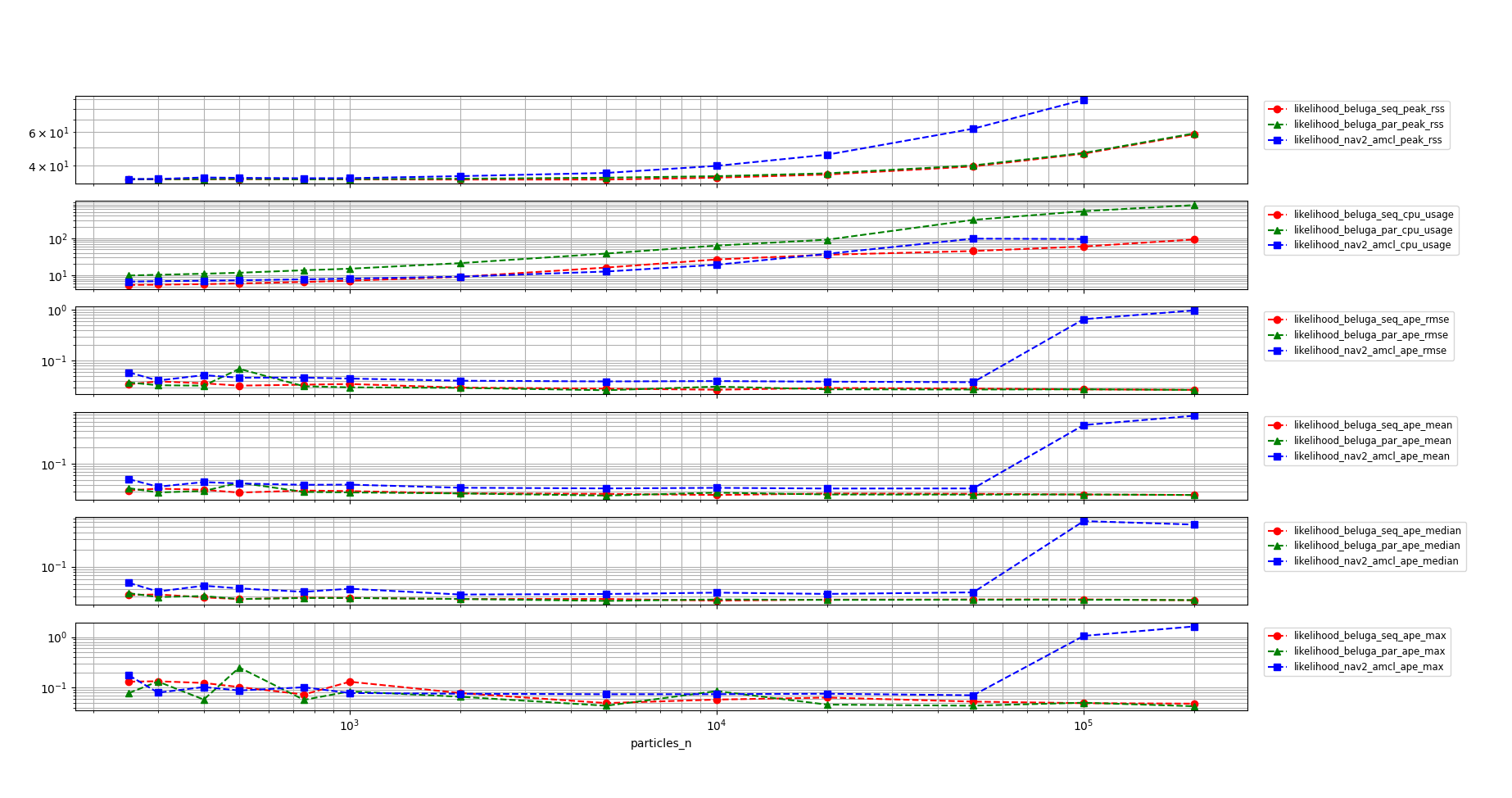

Beluga Seq vs Beluga Par vs. Nav2 AMCL with Likelihood Field Sensor Model

A closer detail of beluga_amcl in non-multithreaded configuration and nav2_amcl can be seen in the following graph:

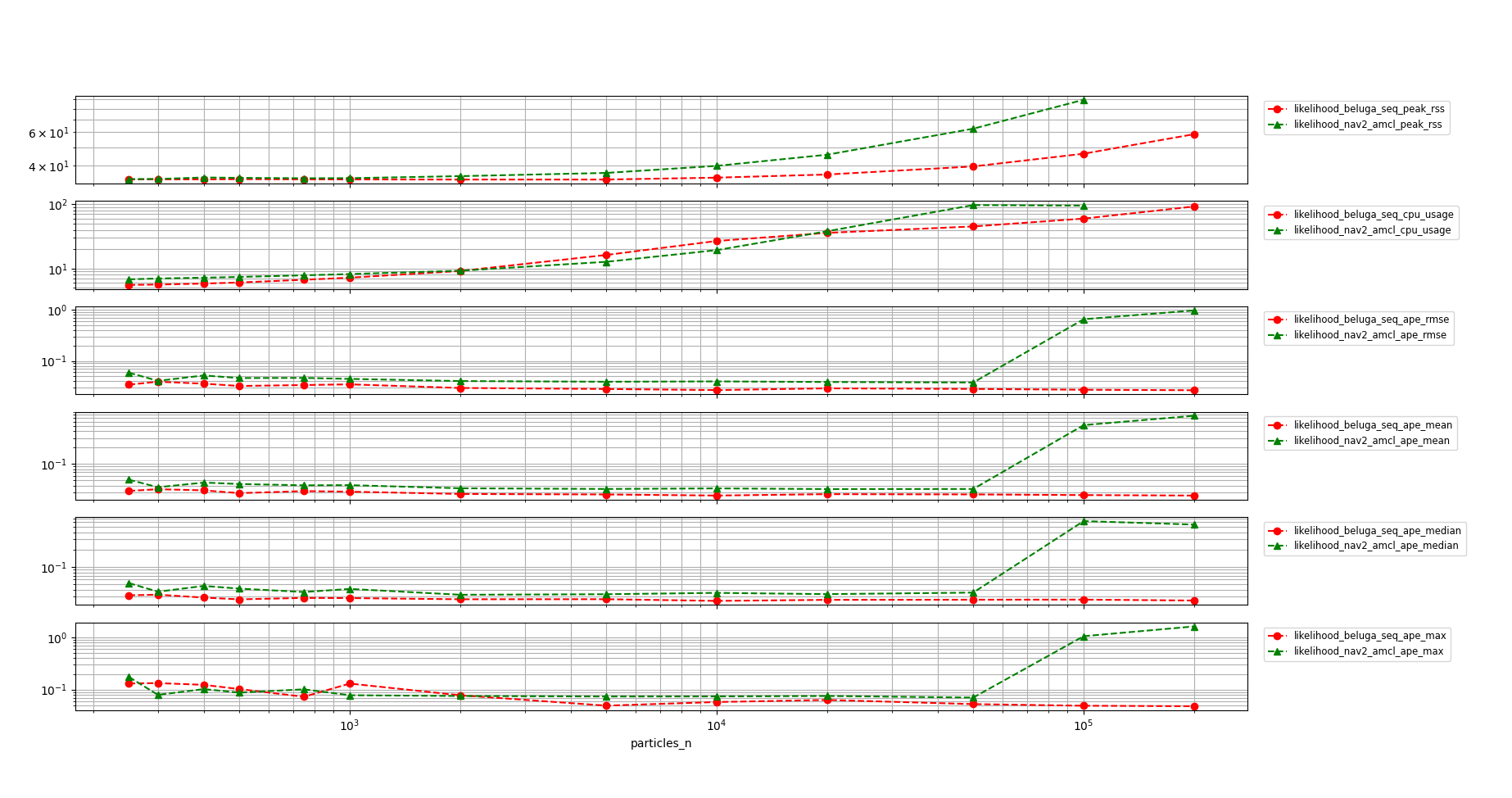

Beluga Seq vs. Nav2 AMCL with Likelihood Field Sensor Model

Comments on the results:

The memory usage of beluga_amcl (both configurations) is significantly lower than that of nav2_amcl.
The non-multithreaded beluga_amcl and nav2_amcl perform similarly in terms of CPU usage.
The multithreaded beluga_amcl CPU requirements are higher than both the non-multithreaded beluga_amcl and nav2_amcl.
In the CPU saturation region, nav2_amcl APE metrics begin to deteriorate significantly, while beluga_amcl’s remain stable. In the non-saturation region, the APE of both beluga_amcl and nav2_amcl is similar with a slight advantage for the former.

Non-multithreaded Beluga vs. Nav2 AMCL with Beam Sensor Model

In the following graph the results of the benchmark are shown for all three of the tested configurations when using the Beam Sensor model. The vertical scale is logarithmic to better show the differences between the configurations throughout the whole range of particle counts.

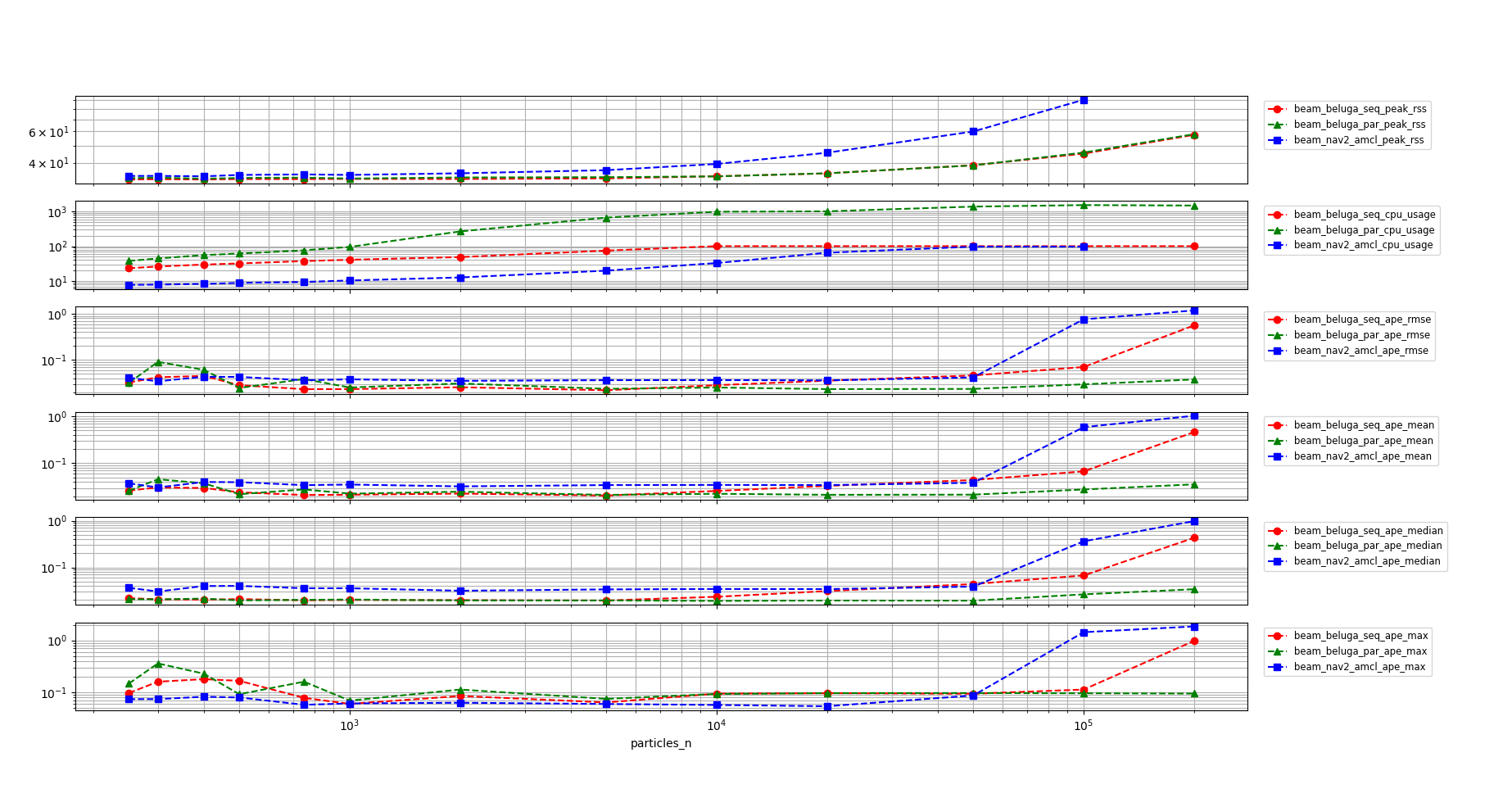

Beluga Seq vs Beluga Par vs. Nav2 AMCL with Beam Sensor Model

A closer detail of beluga_amcl in non-multithreaded configuration and nav2_amcl can be seen in the following graph:

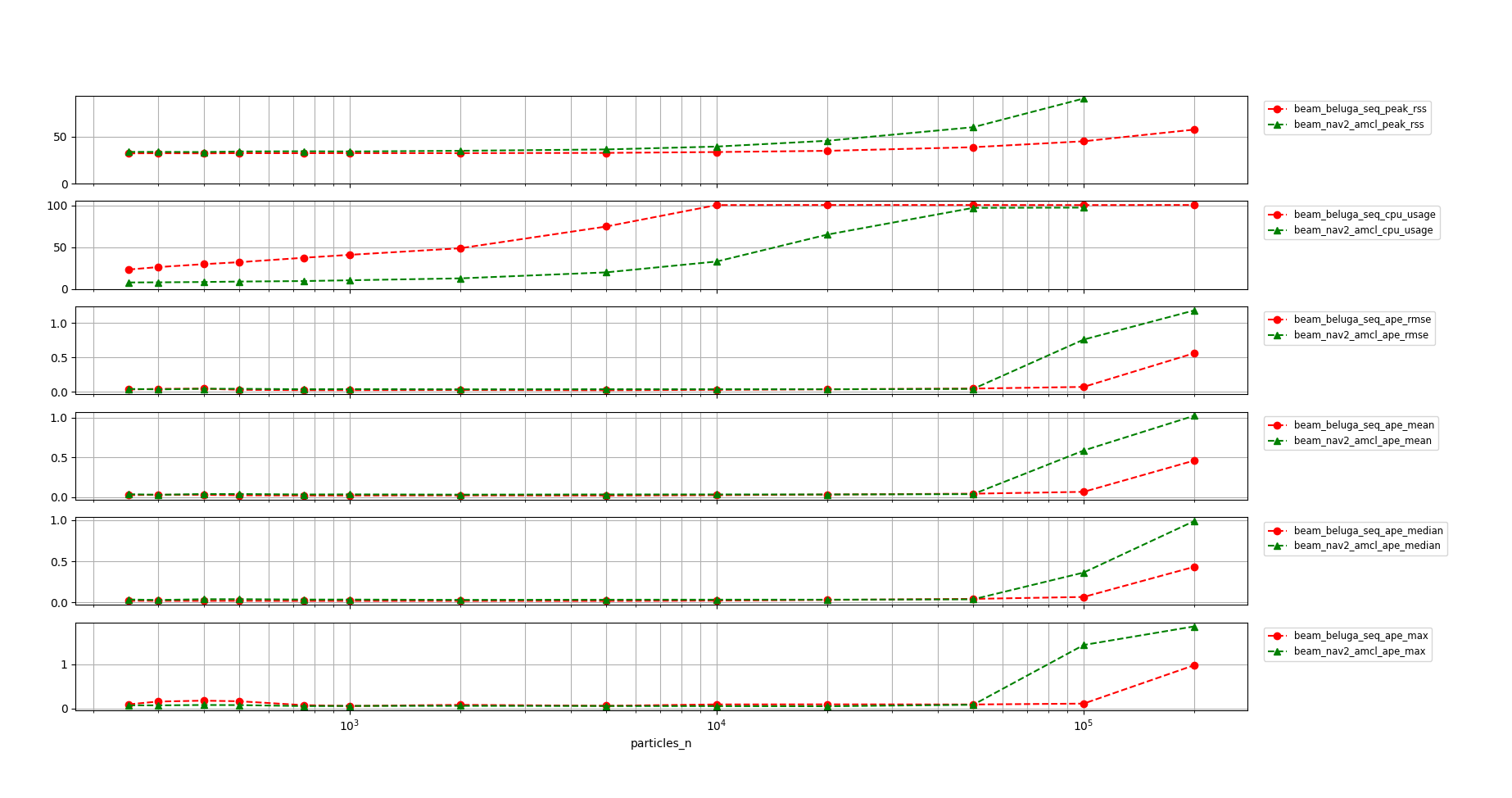

Beluga Seq vs. Nav2 AMCL with Beam Sensor Model

Comments on the results:

beluga_amcl in both multithreaded and non-multithreaded configurations uses significantly less memory than nav2_amcl.
On the other hand, both beluga_amcl configurations use significantly more CPU than nav2_amcl when using the Beam Sensor Model.
The APE performance of both multithreaded and non-multithreaded beluga_amcl is similar to that of nav2_amcl throughout the whole range of particle counts, with a slight advantage for the former.

Conclusions

beluga_amcl’s memory usage is significantly lower than that of nav2_amcl in all configurations.
The Likelihood Field Sensor Model in beluga is about as efficient as that of nav2_amcl in terms of CPU usage.
The Beam Sensor Model, on the other hand, still requires further optimization in order to be competitive with nav2_amcl in terms of CPU usage.
In all configurations beluga_amcl’s APE performance is similar to that of nav2_amcl.

How to reproduce

To replicate the benchmarks, after building and sourcing the workspace, run the following commands from the current directory:

mkdir beam_beluga_seq
cd beam_beluga_seq
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../beam_params.yaml
cd -
mkdir beam_beluga_par
cd beam_beluga_par
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../beam_params_par.yaml
cd -
mkdir beam_nav2_amcl
cd beam_nav2_amcl
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000 --params-file ../beam_params.yaml --package nav2_amcl --executable amcl
cd -
mkdir likelihood_beluga_seq
cd likelihood_beluga_seq
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../likelihood_params.yaml
cd -
mkdir likelihood_beluga_par
cd likelihood_beluga_par
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000  --params-file ../likelihood_params_par.yaml
cd -
mkdir likelihood_nav2_amcl
cd likelihood_nav2_amcl
ros2 run beluga_benchmark parameterized_run --initial-pose-y 2.0 250 300 400 500 750 1000 2000 5000 10000 20000 50000 100000 200000 --params-file ../likelihood_params.yaml --package nav2_amcl --executable amcl
cd -

Once the data has been acquired, it can be visualized using the following commands:

ros2 run beluga_benchmark compare_results \
    -s beam_beluga_seq -l beam_beluga_seq \
    -s beam_beluga_par -l beam_beluga_par \
    -s beam_nav2_amcl  -l beam_nav2_amcl --use-ylog

ros2 run beluga_benchmark compare_results \
    -s beam_beluga_seq -l beam_beluga_seq \
    -s beam_nav2_amcl  -l beam_nav2_amcl --use-ylog

ros2 run beluga_benchmark compare_results \
    -s likelihood_beluga_seq -l likelihood_beluga_seq \
    -s likelihood_beluga_par -l likelihood_beluga_par \
    -s likelihood_nav2_amcl  -l likelihood_nav2_amcl --use-ylog

ros2 run beluga_benchmark compare_results \
    -s likelihood_beluga_seq -l likelihood_beluga_seq \
    -s likelihood_nav2_amcl  -l likelihood_nav2_amcl --use-ylog

ros2 run beluga_benchmark compare_results \
    -s lima_1/likelihood_beluga_seq -l before_likelihood_beluga_seq \
    -s lima_1/likelihood_beluga_par -l before_likelihood_beluga_par \
    -s lima_2/likelihood_beluga_seq -l after_likelihood_beluga_seq \
    -s lima_2/likelihood_beluga_par -l after_likelihood_beluga_par --use-ylog

ros2 run beluga_benchmark compare_results \
    -s lima_1/beam_beluga_seq -l before_beam_beluga_seq \
    -s lima_1/beam_beluga_par -l before_beam_beluga_par \
    -s lima_2/beam_beluga_seq -l after_beam_beluga_seq \
    -s lima_2/beam_beluga_par -l after_beam_beluga_par --use-ylog
